Single-Spring Mechanical Seal

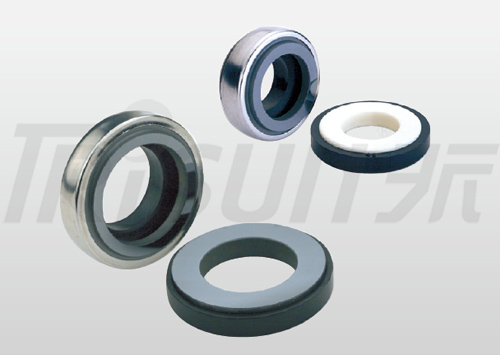

TS 301 Single-Spring Mechanical Seal( replace AESSEAL B01,BURGMANN BT-AR,CRANE PR/DR,FLOWSERVE 118,MUT FA;for Cyclan)

TS 301 Single-Spring Mechanical Seal( replace AESSEAL B01,BURGMANN BT-AR,CRANE PR/DR,FLOWSERVE 118,MUT FA;for Cyclan)

TS 301 Operating Limits： Pressure: 0.6MPa Speed: 10m/s Temperature: -30℃～+200℃ Rotary Ring(Plastic Carbon/Carbon/Sic/TC) Stationary Ring(Ceramic/Sic/Tc) Secondary Seal(nbr/Epdm/VITON) Spring O...

We are here to solve your problems professionally
Contact Now

Contact
  • TS 301 Single-Spring Mechanical Seal( replace AESSEAL B01,BURGMANN BT-AR,CRANE PR/DR,FLOWSERVE 118,MUT FA;for Cyclan)
  • TS 301 Single-Spring Mechanical Seal( replace AESSEAL B01,BURGMANN BT-AR,CRANE PR/DR,FLOWSERVE 118,MUT FA;for Cyclan)
  • TS 301 Single-Spring Mechanical Seal( replace AESSEAL B01,BURGMANN BT-AR,CRANE PR/DR,FLOWSERVE 118,MUT FA;for Cyclan)
  • TS 301 Single-Spring Mechanical Seal( replace AESSEAL B01,BURGMANN BT-AR,CRANE PR/DR,FLOWSERVE 118,MUT FA;for Cyclan)
Related Products
TS 301
Operating Limits：
Pressure:   ≤0.6MPa
Speed:   ≤10m/s
Temperature:   -30℃～+200℃

Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Seal(nbr/Epdm/VITON)
Spring & Other Parts(Sus304/Sus316)

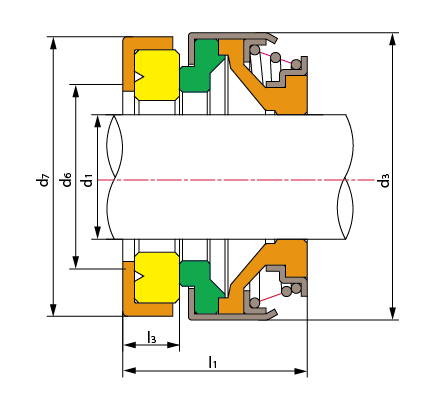

Model d1 (mm) d3 d6 d7 l1 l3
TS301-6 6 18 8 22 14 4
TS301-8S 8 18 10 22 15 4
TS301-8M 8 20 10 22/26 15/16.5  4.0/5.5
TS301-8L 8 24 10 26 16.5 5.5
TS301-10 10 24 12 26 21 8
TS301-11 11 24 13 26 21 8
TS301-12 12 24 14 25/26 21 8
TS301-13 13 24 15 26 18.5/21  5.5/8.0
TS301-13L 13 28 16 28 21 8
TS301-13H 13 32 16 29.5 30.5 8
TS301-14 14 28 16 28/28.5 21 8
TS301-14L 14 32 16 29.5 21 8
TS301-15S 15 28 16 28.5/30 21 8
TS301-15M 15 32 16 30/29.5 21 8
TS301-15L 15 39 18 38 21 8
TS301-16S 16 28 16 29.5/30 21 8
TS301-16M 16 32 18 29.5 21 8
TS301-16L 16 39 18 38 21 8
TS301-16H 16 32 16 30 29 10
TS301-17 17 39 19 42 21 8
TS301-18 18 39 20 42 21 8

Model d1 (mm) d3 d6 d7 l1 l3
TS301-19 19 39 21 42 21 8
TS301-20 20 39 22 42 21 8
TS301-20L 20 42 24 45 23 10
TS301-22S 22 36 24 45 26.5 10
TS301-22L 22 42 24 45 23 10
TS301-23 23 47 25 50 23.5 10
TS301-24 24 47 26 50 23.5 10
TS301-25 25 42 27 50 23.5 10
TS301-25L 25 47 27 50 23.5 10
TS301-26 26 47 29 50 23.5 10
TS301-27 27 47 30 50 23.5 10
TS301-28 28 54 31 57 25 10
TS301-30 30 54 33 57 25 10
TS301-32 32 54 35 57 25 10
TS301-35 35 60 38 63 26 10
TS301-38 38 65 41 68 30 12
TS301-40 40 65 43 68 30 12
TS301-45 45 70 48 73 32 12
TS301-50 50 85 52 88 38 15
TS301-55 55 85 58 88 38 15
TS301-60 60 105 63 110 45 15
TS301-65 65 105 \ 110 47 15
TS301-70 70 105 \ 110 47 15
