MODEL 18” Lapping Machine
The 18” Lapping Machine is ideally suited for lapping low and high production quantities.
The 18” Lapping Machine is a unit with a rigid, steel base. The machine is of the ring lapper configuration, enabling high standards of flatness and surface finish to be routinely achieved.

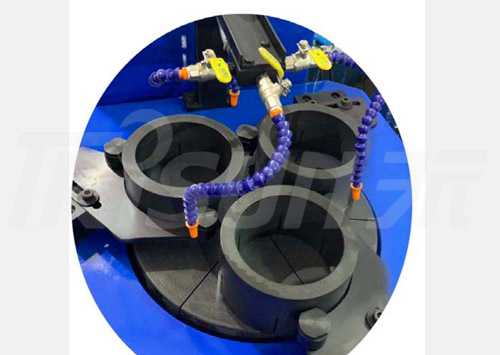

Lap plate flatness control is provided by three conditioning rings, which is located in yoke / roller bearing assemblies. Work pieces are located within carriers or appropriate fixtures which run within the rings.
Weight & Dimension
1. Of the Lapping Machine
Gross Weight: 675kgs Approx
Dimension:L120 x W110 x 130 Cms Approx
2. Of the Auto Slurry Feeding Sytem
Gross Weight: 110 kgs Approx
Dimension:L51 x W63 x 90 Cms Approx
STANDARD FEATURES
• Heavy duty cast aluminum base.
• Wrap-around work table facilitates parts handling.
• Three conditioning rings with roller yoke and bearing assemblies to facilitate in-process plate flatness control.

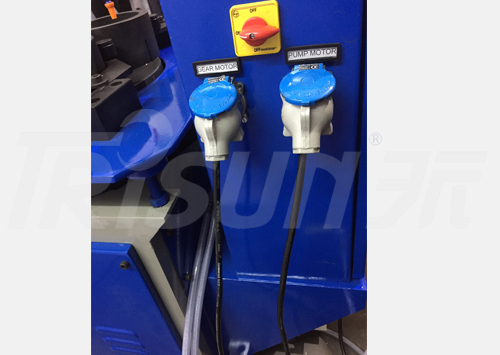

• High torque drive unit with 2 hp motor and gear reducer.

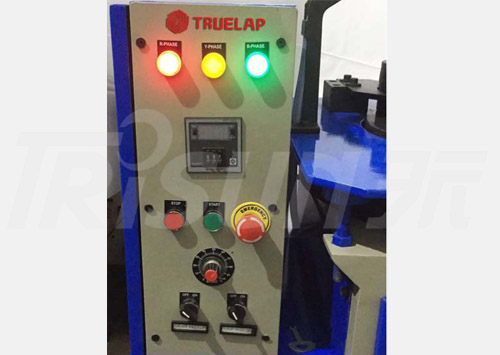

• Automatic digital cycle timer: time ranges from 0.1 to 999 seconds, minutes or hours.
STANDARD SPECIFICATIONS
• High density, cast iron serrated lap plate 457mm O.D. x 90 mm I.D.
• Three high density cast iron serrated conditioning rings. 210 mm O.D x 170 mm I.D.
• Three high density cast iron pressure plates with lifting eye bolts 168mm dia. x 32mm thick.
• Three felt pressure pads 138 mm dia. X 12mm thick.
• Operation and maintenance manual.
• Allen wrench.
• Electronic variable speed drive, 0-50 rpm.

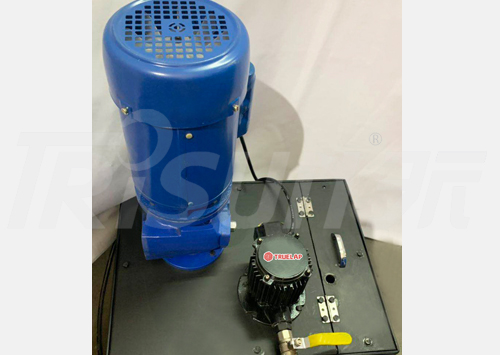

• Abrasive feed system designed for water or oil based lapping slurry, consisting of pump, tank and three outlet system with individual variable flow control. This permits uniform lapping rates at each work station.
OPTIONAL FEATURES
• Custom machines and tooling.
• Various lapping/polishing plates.
• Pneumatic Lifting System.
• Power Voltage & Frequency can be customized.
