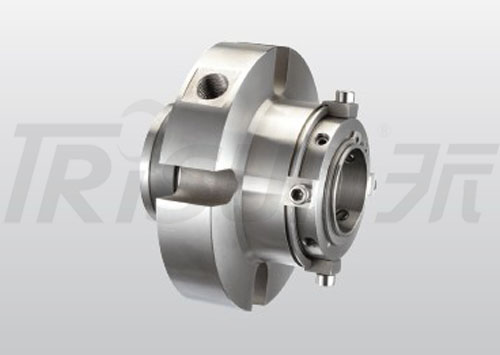

TSDC-B01 Single & Dual Cartridge Seal(TS K2)

TSDC-B01 Single & Dual Cartridge Seal(TS K2)

TSDC-B01(TS K2) Operating Limits : Pressure: P1=1Мпа P3=1.3Мпа Pressure margin : P=P3-P1=0.15~0.2Мпа Speed: 16м/с Temperature: -30˚C ~ +200˚C Rotary Ring (SIC/TC) Stationary Ring (Carbon/S...

We are here to solve your problems professionally
Contact Now

Contact
  • TSDC-B01 Single & Dual Cartridge Seal(TS K2)
  • TSDC-B01 Single & Dual Cartridge Seal(TS K2)
  • TSDC-B01 Single & Dual Cartridge Seal(TS K2)
  • TSDC-B01 Single & Dual Cartridge Seal(TS K2)
Related Products
TSDC-B01(TS K2)
Operating Limits :
Pressure: P1=1Мпа P3=1.3Мпа
Pressure margin : ΔP=P3-P1=0.15~0.2Мпа
Speed: < 16м/с
Temperature: -30˚C ~ +200˚C

Rotary Ring (SIC/TC)
Stationary Ring (Carbon/SIC/TC)
Secondary Seal (VITON/PIFE/Encapsulated Ring)
Spring & Other Part (SUS304/SUS316)

Features of structure:
 1. Double cartridge mechanical seals offer convenient installation.
 2. Seals work independently of rotation direction.
 3. Action-less springs are ready for high speed, and are protected from the medium.
 4. Multi-spring balance that complies with the API610 standard.

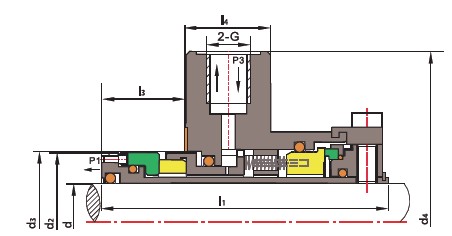

Seal size
d(mm)

d2

d3

d4

d5

l1

l3

l4

S

G
 (inches)

min

max

25

43.0

44.0

51.0

105

62

86.5

24

25.4

14

1/4"

28

46.0

47.0

52.0

105

62

86.5

24

25.4

14

1/4"

30

48.0

49.0

56.0

105

65

86.5

24

25.4

14

1/4"

33

50.0

51.0

57.0

110

67

86.5

24

25.4

14

1/4"

35

53.0

54.0

61.0

113

70

86.5

24

25.4

14

1/4"

38

56.0

57.0

66.0

123

75

86.5

24

25.4

14

3/8"

40

58.0

59.0

68.0

123

78

86.5

24

25.4

16

3/8"

43

60.0

61.5

70.5

133

80

86.5

24

25.4

16

3/8"

45

62.5

64.0

73.0

138

81

86.5

24

25.4

16

3/8"

48

65.5

67.0

75.0

138

84

86.5

24

25.4

16

3/8"

50

68.0

69.0

78,0

148

87

86.5

24

25.4

16

3/8"

55

73.0

74.0

83.0

148

90

86.5

24

25.4

18

3/8"

60

78.0

79.0

91.0

157

102

86.5

24

25.4

18

3/8"

65

83.0

84.5

98.5

163

109

86.5

24

25.4

18

3/8"

70

93.0

95.0

108.0

178

118

86.5

24

25.4

18

3/8"

75

100.0

101.6

118.0

190

129

108.0

30

28.0

18

3/8"

80

106.4

108.0

124.0

195

135

108.0

30

28.0

18

3/8"

85

109.5

111.1

128.0

198

139

108.0

30

28.0

22

3/8"

90

115.9

117.5

135.0

205

145

108.0

30

28.0

22

3/8"

95

119.1

120.7

138.0

208

148

108.0

30

28.0

22

3/8"

100

125.4

127.0

144.0

218

154

108.0

30

28.0

22

3/8"
