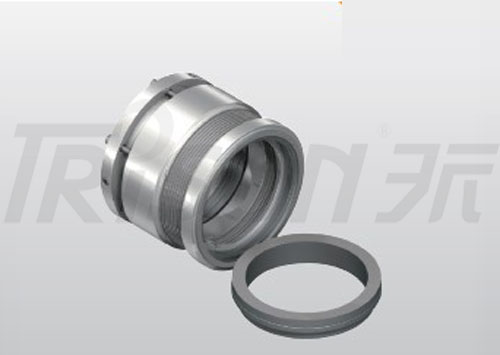

TSMB-C01 Metal Bellows Seal(replace CHESTERTON 886HT)
TSMB-C01 Operating Limits : Pressure: 2MPa Speed: 20m/s Temperature: -73℃~+427℃ otary Ring (SiC/Carbon/TC) Stationary Ring(SiC/TC) Secondary Seal (Flexible Carbon) Metal Bellows (SUS316L/AM350/Inc...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

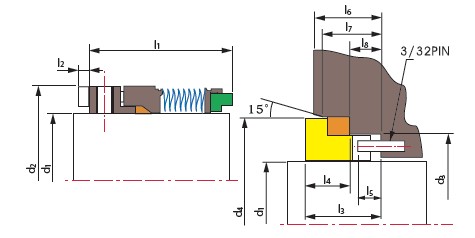

TSMB-C01
|
d1 |
d2 |
l1 |
l2 |
|
d1 |
d2 |
l1 |
l2 |
|
1.000 |
1.562 |
1.687 |
0.125 |
|
25 |
39.7 |
42.8 |
3.2 |
|
1.125 |
1.687 |
1.562 |
0.125 |
|
28 |
42.8 |
39.7 |
3.2 |
|
1.250 |
1.812 |
1.562 |
0.125 |
|
30 |
46.0 |
42.8 |
3.2 |
|
1.375 |
1.937 |
1.750 |
0.125 |
|
32 |
46.0 |
42.8 |
3.2 |
|
1.500 |
2.170 |
1.750 |
0.164 |
|
35 |
49.2 |
44.5 |
3.2 |
|
1.625 |
2.295 |
1.750 |
0.164 |
|
38 |
55.1 |
44.5 |
4.2 |
|
1.750 |
2.420 |
1.750 |
0.164 |
|
40 |
58.3 |
44.5 |
4.2 |
|
1.875 |
2.545 |
1.750 |
0.164 |
|
42 |
61.5 |
44.5 |
4.2 |
|
2.000 |
2.670 |
1.750 |
0.164 |
|
45 |
62.3 |
44.5 |
4.2 |
|
2.125 |
2.795 |
1.750 |
0.164 |
|
48 |
64.6 |
44.5 |
4.2 |
|
2.250 |
2.920 |
1.875 |
0.164 |
|
50 |
67.8 |
44.5 |
4.2 |
|
2.375 |
3.045 |
1.875 |
0.164 |
|
55 |
74.2 |
47.6 |
4.2 |
|
2.500 |
3.187 |
1.875 |
0.164 |
|
60 |
77.3 |
47.6 |
4.2 |
|
2.625 |
3.312 |
1.875 |
0.164 |
|
65 |
84.1 |
47.6 |
4.2 |
|
d1 |
d4 |
l3 |
d3 |
l6 |
l7 |
l8 |
l4 |
l5 |
|
1.000 |
1.625 |
0.437 |
1.384 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.125 |
1.750 |
0.437 |
1.509 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.250 |
1.875 |
0.437 |
1.634 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.375 |
2.000 |
0.437 |
1.759 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.500 |
2.125 |
0.437 |
1.884 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.625 |
2.375 |
0.500 |
2.134 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
1.750 |
2.500 |
0.500 |
2.259 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
1.875 |
2.625 |
0.500 |
2.384 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
2.000 |
2.750 |
0.500 |
2.509 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
2.125 |
3.000 |
0.562 |
2.759 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.250 |
3.125 |
0.562 |
2.884 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.375 |
3.250 |
0.562 |
3.009 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.500 |
3.375 |
0.562 |
3.134 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.625 |
3.375 |
0.625 |
3.134 |
0.682 |
0.521 |
0.341 |
0.379 |
0.170 |
|
d1 |
d4 |
l3 |
d3 |
l6 |
l7 |
l8 |
l4 |
l5 |
|
1.000 |
1.625 |
0.437 |
1.384 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.125 |
1.750 |
0.437 |
1.509 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.250 |
1.875 |
0.437 |
1.634 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.375 |
2.000 |
0.437 |
1.759 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.500 |
2.125 |
0.437 |
1.884 |
0.551 |
0.390 |
0.240 |
0.261 |
0.125 |
|
1.625 |
2.375 |
0.500 |
2.134 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
1.750 |
2.500 |
0.500 |
2.259 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
1.875 |
2.625 |
0.500 |
2.384 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
2.000 |
2.750 |
0.500 |
2.509 |
0.592 |
0.431 |
0.251 |
0.314 |
0.125 |
|
2.125 |
3.000 |
0.562 |
2.759 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.250 |
3.125 |
0.562 |
2.884 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.375 |
3.250 |
0.562 |
3.009 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.500 |
3.375 |
0.562 |
3.134 |
0.641 |
0.480 |
0.300 |
0.346 |
0.156 |
|
2.625 |
3.375 |
0.625 |
3.134 |
0.682 |
0.521 |
0.341 |
0.379 |
0.170 |
