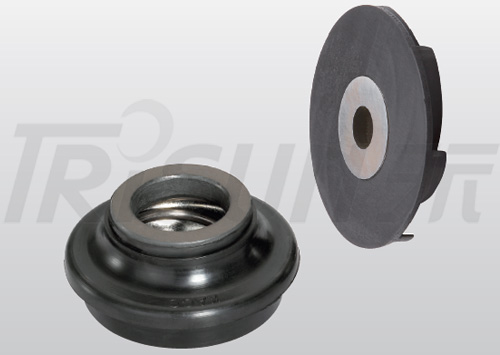

TS K Auto Cooling Pump Seal
Operating Limits: Pressure: 0.1MPa Rotary Speed: 5000r/min Temperature: -30℃～+150℃ Medium: Clean water, seawater, gas engine antifreeze Rotary Ring (Free-cutting Iron) * with PA66 impeller Stati...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits:
Pressure: ≤0.1MPa
Rotary Speed: ≤5000r/min
Temperature: -30℃～+150℃
Medium: Clean water, seawater,
gas engine antifreeze
Rotary Ring (Free-cutting Iron) * with PA66 impeller
Stationary Ring(Plastic Carbon/Carbon/SiC)
Secondary Seal (nbr/Epdm/Hnbr/VITON)
Spring (SUS304/SUS316/65Mn)
Other Parts (SUS304/SUS316/Q235-A)

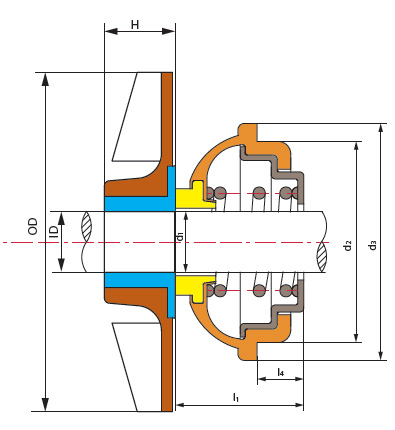

| Model | d1(mm) | d2 | d3 | l1 | l4 | equivalent |
| TSK-12 | 12 | 29 | 36 | 14 | 8 | \ |
| TSK-12A(with impeller) | 12 | 30 | 37 | 13.5 | 6 | \ |
| TSK-14A | 14 | 34 | 40.6 | 15.5 | 7 | \ |
| TSK-14B | 14 | 30 | 36 | 16.5 | 7 | K-14D |
| TSK-14C | 14 | 35 | 40.6 | 15.5 | 7 | \ |
| TSK-16A | 16 | 38 | 43.6 | 16.5 | 8 | \ |
| TSK-16B | 16 | 37 | 42.5 | 16.5 | 8 | K-16E |
| TSK-16C | 16 | 36 | 42 | 16.5 | 8 | K-16F |
| TSK-19 | 19 | 40 | 49 | 15.5 | 8 | K-20 |
| TSK-28 | 28 | 49 | 56.5 | 27.5 | 9.5 | \ |
