TS XP Auto Cooling Pump Seal
Operating Limits: Pressure: 0.1MPa Rotary Speed: 4500r/min Temperature: -30℃～+150℃ Stationary Ring(Plastic Carbon/Carbon) Secondary Seal (nbr/Epdm/Hnbr/VITON) Spring Other Parts (Sus304/Sus316) ...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits:
Pressure: ≤0.1MPa
Rotary Speed: ≤4500r/min
Temperature: -30℃～+150℃
Stationary Ring(Plastic Carbon/Carbon)
Secondary Seal (nbr/Epdm/Hnbr/VITON)
Spring & Other Parts (Sus304/Sus316)

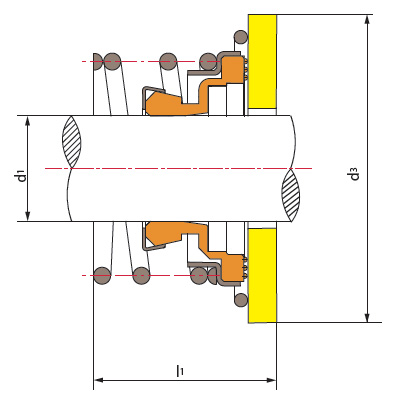

| Model | d1(mm) | d3 | l1 |
| TSXP-15 | 15 | 42.8 | 27.5 |
| TSXP-17 | 17 | 42 | 22.5 |
| TSXP-19 | 19 | 42.5 | 26.8 |
| TSXP-24 | 24 | 50.3 | 29 |
| TSXP-24A | 24 | 46.9 | 22 |
