Installation—for installation in open grooves

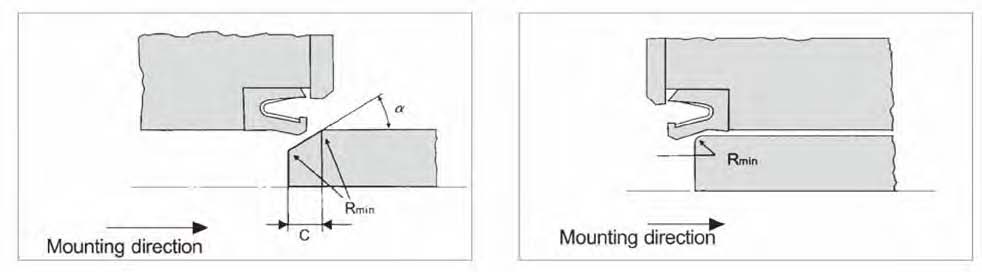

Assembly of rod seal in open groove.
Sealing lips in mounting direction.

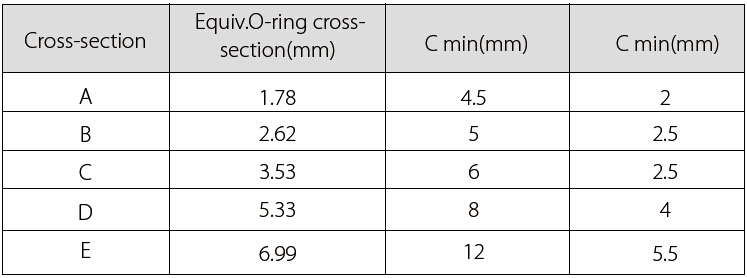

Values for lead-in chamfer:
see table below.
All edges rounded.
We recommend: Rmin = 0.5mm
Assembly of rod seal in open groove.
Back of the seal in mounting direction.
All edges rounded.
We recommend: Rmin = 1mm

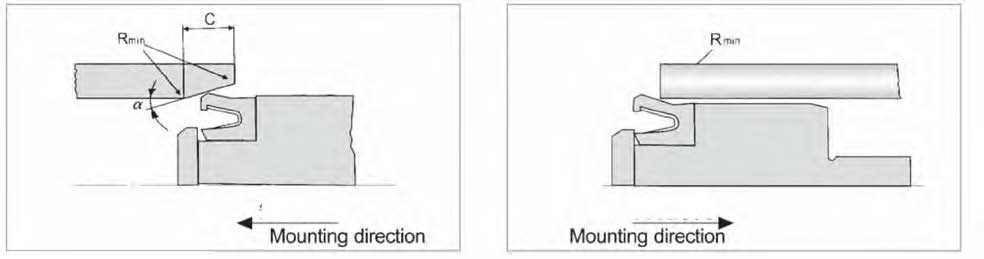

Assembly of piston seal in open groove.
Sealing lips in mounting direction.
Values for lead-in chamfer:
see table below. All edges rounded.
We recommend: Rmin = 0.5mm
Assembly of piston seal in open groove.
Back of the seal in mounting direction
All edges rounded.
We recommend: Rmin = 1mm
HiperSeal can fit AS 568A glands(or other standard O-ring groove) Without any modification
HiperSeal Can replace O-ring , and match DIN 3771, ISO 3601, AS 568, BS 1806 standard.
