Piston seal with increased spring force.
Static & dynamic sealing -Type HP
Type HP:
Piston seal with increased
spring force for static & dynamic application
Application Range
Pressure: ≦ 400 bar
Temperature: -120 ～ +260℃
*Other materials are available for special operating conditions.
Our application engineers will be glad to advise you.

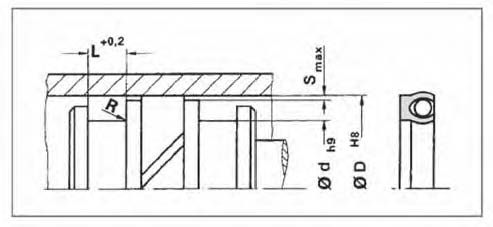

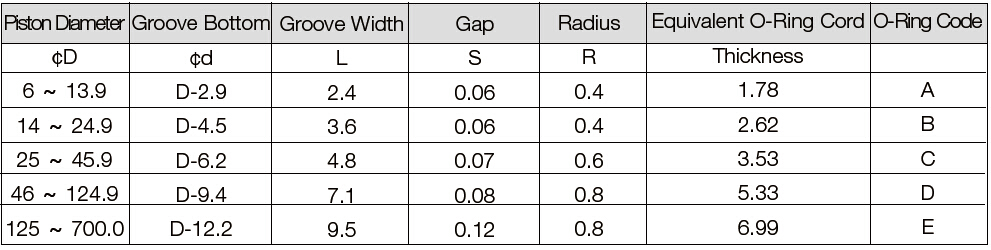

Example of an order
Type HP
Piston diameter ¢D=100 mm
Groove bottom ¢d=90.6mm
Groove width L=7.1mm
