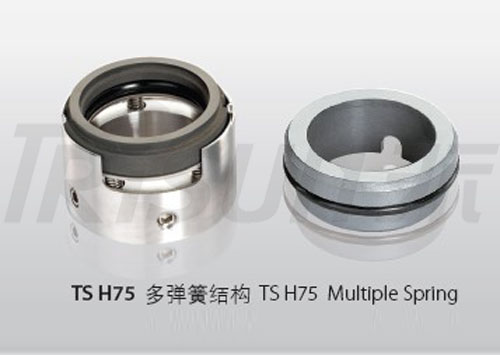

TS H7N Machined Mechanical Seal (Replace BURGMANN H7N) TS H75 (Replace BURGMANN H75, MTU DR1-HS)）
our Mechanical seal model H7N can Replace BURGMANN H7N.our Mechanical seal model H75 can BURGMANN H75 and MTU DR1-HS. The normal material combination include SIC/RESIN CARBON/NBR/SS304,sic/sic/nbr/ss3...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
model H75 can BURGMANN H75 and MTU DR1-HS. The normal material combination
include SIC/RESIN CARBON/NBR/SS304,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on.
we also can make changes as customers'requirement or totally design a new type of
mechanical seal to meet clients'needs.
TS H7N TS H75
|
Seal size |
d0 |
d1 |
d6 |
d7 |
l2 |
l1k |
|
25 |
30 |
45 |
34 |
40 |
36.0 |
47.5 |
|
28 |
33 |
48 |
37 |
43 |
38.5 |
50.0 |
|
30 |
35 |
50 |
39 |
45 |
38.5 |
50.0 |
|
33 |
38 |
55 |
42 |
48 |
38.5 |
50.0 |
|
35 |
40 |
57 |
44 |
50 |
38.5 |
50.0 |
|
38 |
43 |
60 |
49 |
56 |
38.5 |
52.5 |
|
40 |
45 |
62 |
51 |
58 |
38.5 |
52.5 |
|
43 |
48 |
65 |
54 |
61 |
38.5 |
52.5 |
|
45 |
50 |
67 |
56 |
63 |
38.5 |
52.5 |
|
48 |
53 |
70 |
59 |
66 |
38.5 |
52.5 |
|
50 |
55 |
72 |
62 |
70 |
42.5 |
57.5 |
|
53 |
58 |
79 |
65 |
73 |
42.5 |
57.5 |
|
55 |
60 |
81 |
67 |
75 |
42.5 |
57.5 |
|
60 |
65 |
86 |
72 |
80 |
47.5 |
62.5 |
|
65 |
70 |
91 |
77 |
85 |
47.5 |
62.5 |
|
70 |
75 |
99 |
83 |
92 |
52.0 |
70.0 |
|
75 |
80 |
104 |
88 |
97 |
52.0 |
70.0 |
|
80 |
85 |
109 |
95 |
105 |
51.8 |
70.0 |
|
85 |
90 |
114 |
100 |
110 |
56.8 |
75.0 |
|
90 |
95 |
119 |
105 |
115 |
56.8 |
75.0 |
|
95 |
100 |
124 |
110 |
120 |
57.8 |
75.0 |
