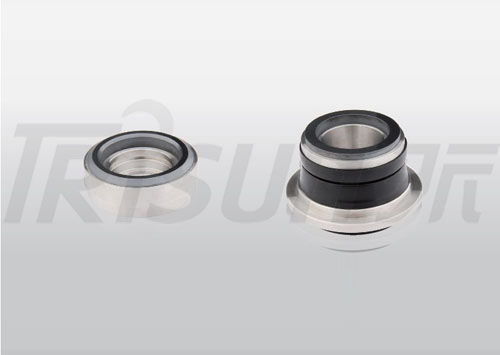

TS AP Machined Mechanical Seal
Our mechanical seal model AP belong to machined mechanical seal and is widely used for industrial pumps. The normal material combination is sic/sic/nbr/ss304. we also can make changes as customersrequ...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Our mechanical seal model AP belong to machined mechanical seal and is widely used for industrial pumps. The normal material combination is sic/sic/nbr/ss304. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

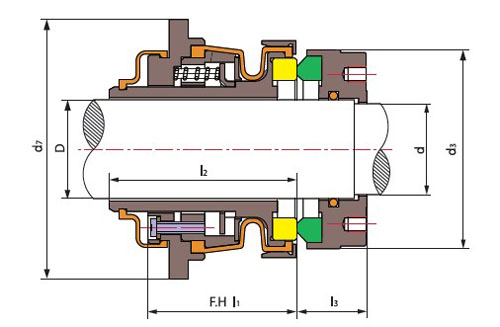

TS AP
|
Seal size |
d |
d3 |
d7 |
l1 |
l2 |
l3 |
|
35 |
25 |
70 |
100 |
68 |
76 |
27.8 |
|
45 |
38 |
80 |
110 |
68 |
76 |
27.8 |
|
50 |
40 |
85 |
115 |
68 |
76 |
28.0 |
|
60 |
50 |
95 |
125 |
68 |
76 |
30.6 |
