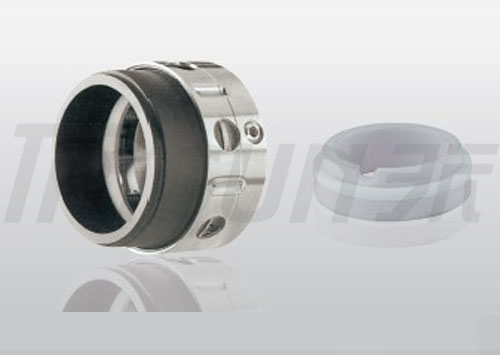

TS 58B (Machined Mechanical Seal (Replace AESSEAL M04S,BURGMANN BT-C5.KB,CRANE 58B,MTU DR3-HS) TS 59B ((Replace AESSEAL M04,BURGMANN BT-C56.KB,CRANE 59B,MTU DR3-HSC))

We are here to solve your problems professionally
Contact Now

Contact

Tel:0086-21-58355541
Fax:0086-21-58353141
Email: trisun24@trisunltd.com（sales）

Features
Parameters
Applications

our Mechanical seal model 58B and 59B can Replace AESSEAL M04S,BURGMANN BT-C5.KB,CRANE 58B and MTU DR3-HS,which is widely used for industrial pumps. The normal material combination include resin carbon/ceramic/nbr/ss304,resin carbon/tc/nbr/ss304,sic/sic/nbr/ss304 ,tc/tc/nbr/ss304 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.

TS 58B TS 59B

Operating Limits:

Pressure: ≤2.5MPa

Speed: ≤25m/s

Temperature: -30℃~+200℃

Design Features:

a. Conform to ISO3069 and DIN24960 standards

b. Balanced mechanical seal

c. TS 58B is rubber O-ring, TS 59B is PTFE seal ring

d. Materials same as TS 58U,TS 59U

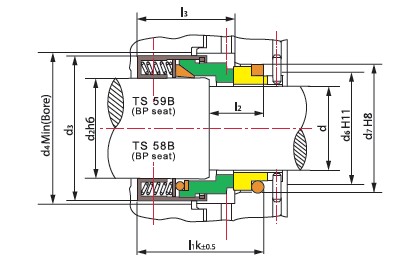

Seal size d(mm)	d₂	d₃	d₄	l₁k	l₂	l₃	d₆	d₇
14	18	32	34	42.5	18	30.5	21	25
16	20	34	36	42.5	18	30.5	23	27
18	22	36	38	45.0	20	31.5	27	33
20	24	38	40	45.0	20	31.5	29	35
22	26	40	42	45.0	20	31.5	31	37
24	28	42	44	47.5	20	34.2	33	39
25	30	44	46	47.5	20	34.5	34	40
28	33	47	49	50.0	20	37.5	37	43
30	35	49	51	50.0	20	38.0	39	45
32	38	54	58	50.0	20	38.0	42	48
33	38	54	58	50.0	20	38.0	42	48
35	40	56	60	50.0	20	38.0	44	50
38	43	59	63	52.5	23	39.5	49	56
40	45	61	65	52.5	23	39.5	51	58
43	48	64	68	52.5	23	39.5	54	61
45	50	66	70	52.5	23	39.5	56	63
48	53	69	73	52.5	25	39.5	59	66
50	55	71	75	57.5	25	44.0	62	70
53	58	78	83	57.5	25	44.0	65	73
55	60	80	85	57.5	25	44.0	67	75
58	63	83	88	62.5	25	49.0	70	78
60	65	85	90	62.5	25	49.0	72	80
63	68	88	93	62.5	25	49.0	75	83
65	70	90	95	62.5	25	49.0	77	85
70	75	95	104	70.0	28	55.5	83	92
75	80	104	109	70.0	28	55.5	88	97
80	85	109	114	70.0	28	55.0	95	105
85	90	114	119	75.0	28	60.0	100	110
90	95	119	124	75.0	28	60.0	105	115
95	100	124	129	75.0	28	60.0	110	120
100	105	129	134	75.0	28	60.0	115	125
