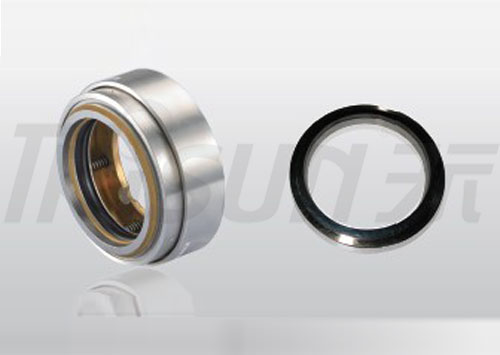

TS 58UR Machined Mechanical Seal (for FLYGT PUMP)
Our mechanical seal model 58UR can replace ITT seals,which is widely used for FLYGT PUMP and mining industry.The normal material combination include TC/TC/VITON/SS304/2CR13 and Resin carbon/TC/viton/s...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Our mechanical seal model 58UR can replace ITT seals,which is widely used for FLYGT PUMP and mining industry.The normal material combination include TC/TC/VITON/SS304/2CR13 and Resin carbon/TC/viton/ss304/2cr13. Our seal structure is totally the same as ITT original.we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
TS 58UR
Operating Limits:
Pressure: ≤1.0MPa
Speed: ≤10m/s
Temperature: -20℃~+150℃
|

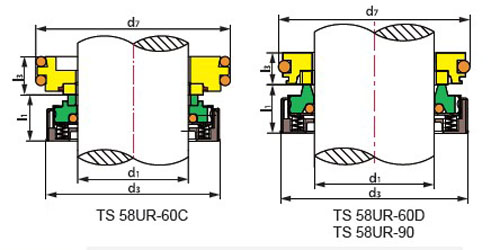

Model |
d1 (mm) |
d3 |
d7 |
l1 |
l3 |
Conform |
|
TS58UR-60C |
60 |
93.0 |
103.0 |
36 |
20.2 |
58UR-60B |
|
TS58UR-60D |
60 |
93.0 |
85.5 |
36 |
13.0 |
58UR-60A |
|
TS58UR-90 |
90 |
116.5 |
115.0 |
32 |
16.0 |
\ |
