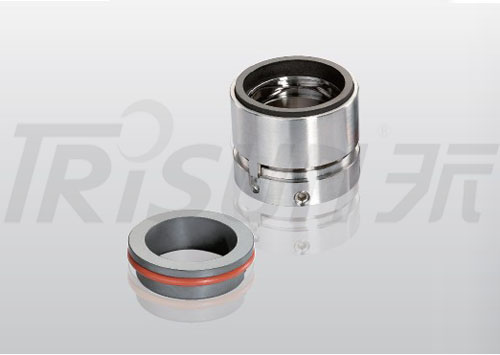

TS HJ Machined Mechanical Seal (Replace BURGMANN HJ92N , MTU DR2-S)
Our mechanical seal model HJ can replace BURGMANN HJ92N and MTU DR2-S,which is widely used for industrial pumps. The normal material combination include resin carbon/SIC/NBR/ss304,sic/sic/NBR/ss304 an...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Our mechanical seal model HJ can replace BURGMANN HJ92N and MTU DR2-S,which is widely used for industrial pumps. The normal material combination include resin carbon/SIC/NBR/ss304,sic/sic/NBR/ss304 and so on. we also can make changes as customers'requirement or totally design a new type of mechanical seal to meet clients'needs.
TS HJ
|

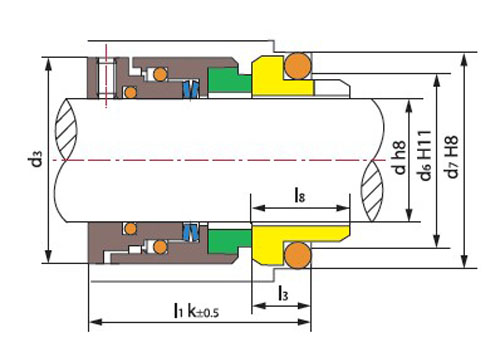

Seal size |
d3 |
d6 |
d7 |
l8 |
l1k |
l3 |
|
18 |
32 |
27 |
33 |
15.0 |
37.5 |
7 |
|
20 |
34 |
29 |
35 |
15.0 |
37.5 |
7 |
|
22 |
36 |
31 |
37 |
15.0 |
37.5 |
7 |
|
24 |
38 |
33 |
39 |
15.0 |
40.0 |
7 |
|
25 |
39 |
34 |
40 |
15.0 |
40.0 |
7 |
|
28 |
42 |
37 |
43 |
15.0 |
42.5 |
7 |
|
30 |
44 |
39 |
45 |
15.0 |
42.5 |
7 |
|
32 |
47 |
42 |
48 |
15.0 |
42.5 |
7 |
|
33 |
47 |
42 |
48 |
15.0 |
42.5 |
7 |
|
35 |
49 |
44 |
50 |
15.0 |
42.5 |
7 |
|
38 |
54 |
49 |
56 |
16.0 |
45.0 |
8 |
|
40 |
56 |
51 |
58 |
16.0 |
45.0 |
8 |
|
43 |
59 |
54 |
61 |
16.0 |
45.0 |
8 |
|
45 |
61 |
56 |
63 |
16.0 |
45.0 |
8 |
|
48 |
64 |
59 |
66 |
16.0 |
45.0 |
8 |
|
Seal size |
d3 |
d6 |
d7 |
l8 |
l1k |
l3 |
|
50 |
66 |
62 |
70 |
17.0 |
47.5 |
9.5 |
|
53 |
69 |
65 |
73 |
17.0 |
47.5 |
9.5 |
|
55 |
71 |
67 |
75 |
17.0 |
47.5 |
9.5 |
|
58 |
78 |
70 |
78 |
18.0 |
52.5 |
10.5 |
|
60 |
80 |
72 |
80 |
18.0 |
52.5 |
10.5 |
|
63 |
83 |
75 |
83 |
18.0 |
52.5 |
10.5 |
|
65 |
85 |
77 |
85 |
18.0 |
52.5 |
10.5 |
|
68 |
88 |
81 |
90 |
18,5 |
52.5 |
11.0 |
|
70 |
90 |
83 |
92 |
19.0 |
60.0 |
11.5 |
|
75 |
99 |
88 |
97 |
19.0 |
60.0 |
11.5 |
|
80 |
104 |
95 |
105 |
19.0 |
60.0 |
11.5 |
|
85 |
109 |
100 |
110 |
19.0 |
60.0 |
11.5 |
|
90 |
114 |
105 |
115 |
20.5 |
65.0 |
13.0 |
|
95 |
119 |
110 |
120 |
20.5 |
65.0 |
13.0 |
|
100 |
124 |
115 |
125 |
20.5 |
65.0 |
13.0 |
