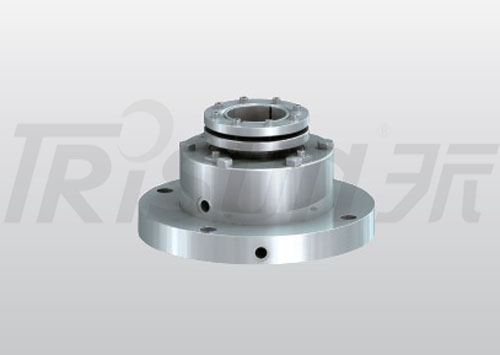

TSMA-J04 Mixer and Agitator Seal(replace John crane BW708 ) /TSMA-J05(replace John crane BW718 )
TSMA-J04 TSMA-J05 Operating Limits : Pressure: 2MPa (single ply bellow) 6.9MPa (double ply bellow） Speed: 25m/s Temperature: -75℃~+425℃ otary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC) Second...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

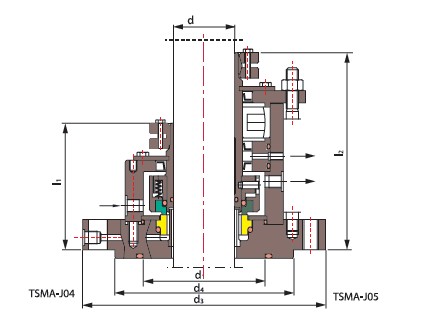

TSMA-J04 TSMA-J05
|
d |
d1 |
d3 |
d4 |
l1 |
l2 |
|
40 |
91 |
175 |
110 |
115 |
165 |
|
50 |
107 |
240 |
176 |
115 |
175 |
|
60 |
120 |
240 |
176 |
125 |
195 |
|
80 |
149 |
275 |
204 |
140 |
215 |
|
100 |
174 |
305 |
234 |
140 |
230 |
|
125 |
199 |
330 |
260 |
160 |
255 |
|
140 |
218 |
395 |
313 |
170 |
275 |
|
160 |
237 |
395 |
313 |
170 |
275 |
|
180 |
263 |
445 |
364 |
190 |
300 |
|
200 |
288 |
445 |
364 |
190 |
320 |
|
220 |
326 |
505 |
422 |
200 |
335 |
