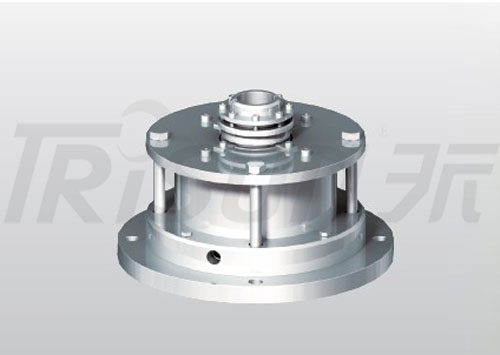

TSMA-B02 Mixer and Agitator Seal(replace BURGMAN M461 )
TSMA-B02 Operating Limits : Pressure: 0.6MPa/1.6MPa Speed: 2m/s/5m/s Temperature: -30℃~+200℃/-80℃~+250℃ Rotary Ring (SiC/Carbon/TC) Stationary Ring (SiC/TC/Ceramic) Secondary Seal (VlTON/Encap...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）

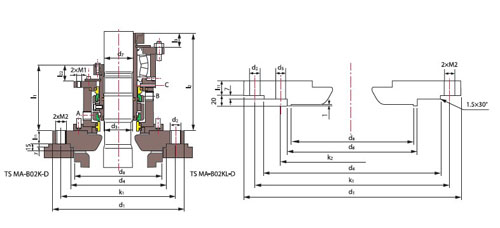

TSMA-B02
|
d3 |
d7 |
d1/ |
Nxd2 |
d4 |
Nxd5 |
d6 |
d8 |
k1 |
k2 |
l1 |
l2 |
l11 |
I22 |
l3 |
M1 |
M2 |
A,B |
|
40 |
38 |
175 |
4x18 |
110 |
\ |
\ |
102 |
145 |
\ |
142 |
184 |
25 |
35 |
28 |
M12 |
M16 |
G3/8 |
|
50 |
48 |
240 |
8x18 |
176 |
\ |
\ |
138 |
210 |
\ |
147 |
195 |
25 |
40 |
28 |
M12 |
M16 |
G3/8 |
|
60 |
58 |
275 |
8x22 |
204 |
\ |
\ |
188 |
240 |
\ |
158 |
203 |
25 |
42 |
28 |
M12 |
M20 |
G3/8 |
|
80 |
78 |
305 |
8x22 |
234 |
\ |
\ |
212 |
270 |
\ |
170 |
240 |
30 |
45 |
34 |
M16 |
M20 |
G1/2 |
|
100 |
98 |
395 |
12x22 |
313 |
\ |
\ |
268 |
350 |
\ |
177 |
240 |
30 |
52 |
34 |
M16 |
M20 |
G1/2 |
|
100 |
98 |
395 |
12x22 |
313 |
\ |
\ |
268 |
350 |
\ |
177 |
240 |
30 |
52 |
34 |
M16 |
M20 |
G1/2 |
|
125 |
120 |
505 |
4x22 |
422 |
12x22 |
320 |
306 |
460 |
350 |
208 |
266 |
30 |
75 |
40 |
M20 |
M20 |
G1/2 |
|
140 |
135 |
505 |
4x22 |
422 |
12x22 |
320 |
306 |
460 |
350 |
223 |
282 |
30 |
79 |
40 |
M20 |
M20 |
G1/2 |
|
160 |
150 |
505 |
4x22 |
422 |
12x22 |
320 |
306 |
460 |
350 |
228 |
282 |
30 |
77 |
40 |
M20 |
M20 |
G1/2 |
|
160 |
150 |
505 |
4x22 |
422 |
12x22 |
320 |
306 |
460 |
350 |
228 |
282 |
30 |
77 |
40 |
M20 |
M20 |
G1/2 |
|
160 |
150 |
505 |
4x26 |
474 |
12x22 |
370 |
356 |
515 |
400 |
228 |
282 |
30 |
77 |
40 |
M20 |
M20 |
G1/2 |
