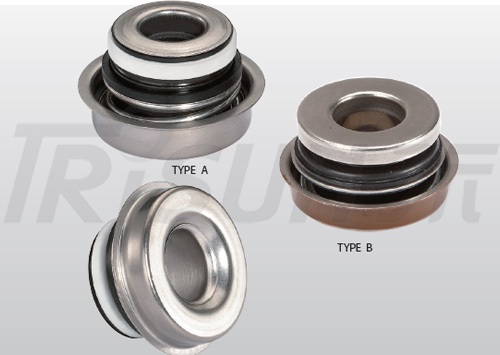

TS FBW Auto Cooling Pump Seal (Replace MTU U/UH/UHH)
Operating Limits: Pressure: 0.3MPa Rotary Speed: 9000r/min Temperature: -30℃～+150℃ Medium: Clean water, seawater, gas engine antifreeze M/hnbr/VITON) Cup Gasket (NBR/EPDM/VITON) Rotary Ring (Cer...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits:
Pressure: ≤0.3MPa
Rotary Speed: ≤9000r/min
Temperature: -30℃～+150℃
Medium: Clean water, seawater,
gas engine antifreeze
M/hnbr/VITON)
Cup Gasket (NBR/EPDM/VITON)
Rotary Ring (Ceramic/SiC)
Stationary Ring (Plastic Carbon/Carbon/SiC)Spring (65Mn/SUS304/SUS316)
Axial Pipe (SUS304/SUS316)
Stationary Seat (SUS304/SUS316)
Bellows (nbr/EPDOperating Limits

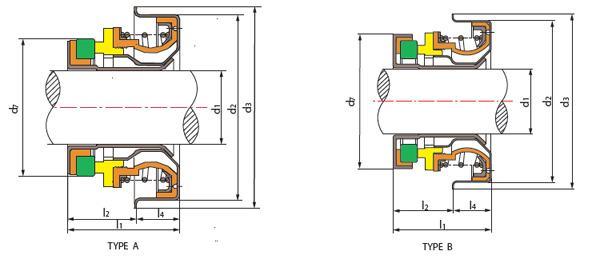

| Model | d1 (mm) | d2 | d3 | d7 | l2 | l4 | TYPE |
| TSFBW-10 | 10 | 30 | 35 | 23.5 | 13 | 8 | B |
| TSFBW-12C | 12 | 30 | 35 | 28.5 | 14.7 | 7 | B |
| TSFBW-12M | 12 | 30 | 35 | 24 | 20 | 8 | A |
| TSFBW-15 | 15 | 36.5 | 41 | 29 | 19.9 | 8 | A |
| TSFBW-15A | 15 | 36.5 | 41 | 32.5 | 19.3 | 8 | B |
| TSFBW-16 | 16 | 36.5 | 41 | 29 | 19.9 | 8 | A |
| TSFBW-16B | 16 | 36.5 | 41 | 32.5 | 19.4 | 8.2 | B |
| TSFBW-16C | 16 | 36.5 | 41 | 30.5 | 20.1 | 8.7 | B |
| TSFBW-16L | 16 | 38.1 | 43.6 | 29 | 19.8 | 8.5 | A |
| TSFBW-20 | 20 | 40 | 43.8 | 34 | 20 | 9.5 | A |
| Model | d1 (inches) | d2 | d3 | d7 | l2 | l4 | TYPE |
| TSFBW-1/2"A | 12.7 | 30 | 35 | 28.5 | 14.7 | 7 | B |
| TSFBW-1/2"C | 12.7 | 30 | 35 | 24.8 | 17.5 | 9.5 | B |
