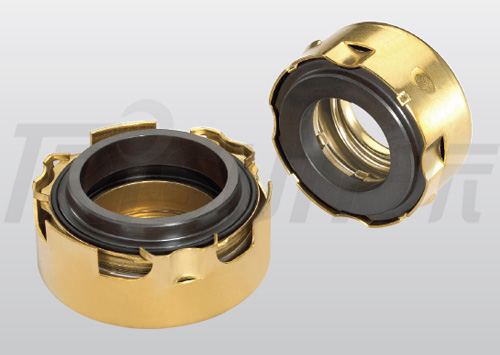

TS T Auto Cooling Pump Seal (Replace MTU T1/T2/T3)
Operating Limits: Pressure: 0.3MPa Rotary Speed: 4500r/min Temperature: -30℃～+150℃ Stationary Ring(Plastic Carbon/Carbon/SiC) Secondary Seal (nbr/Epdm/Hnbr/viton) Spring (65Mn/SUS304) Other Part...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits:
Pressure: ≤0.3MPa
Rotary Speed: ≤4500r/min
Temperature: -30℃～+150℃
Stationary Ring(Plastic Carbon/Carbon/SiC)
Secondary Seal (nbr/Epdm/Hnbr/viton)
Spring (65Mn/SUS304)
Other Parts (Brass/SUS304/Q235-A)

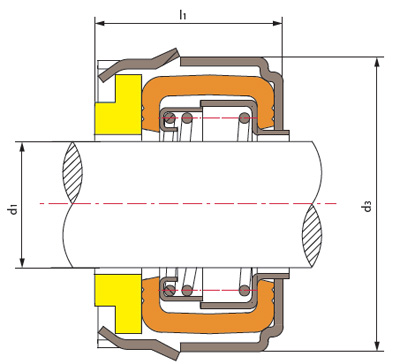

| Model | d1(mm) | d3 | l1 |
| TST-08 | 16 | 36.5 | 16.5 |
| TST-08S | 16 | 33.4 | 14.5 |
| TST-04 | 20 | 43 | 18 |
| TST04H | 20 | 40.8 | 22.5 |
| TST-02S | 25 | 51 | 25.5 |
| TST-02M | 25 | 52 | 23 |
| TST-02L | 25 | 52.5/52.0 | 27 |
