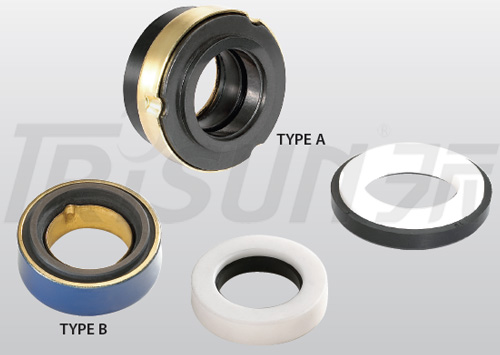

TS TB Auto Cooling Pump Seal
Operating Limits: Pressure: 0.3MPa Rotary Speed: 4500r/min Temperature: -30℃～+150℃ Rotary Ring (Ceramic/SiC) Stationary Ring (Plastic Carbon/Carbon/SiC) Cup Gasket (NBR/EPDM/HNBR/VITON) Bellows ...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
Related Products
Operating Limits:
Pressure: ≤0.3MPa
Rotary Speed: ≤4500r/min
Temperature: -30℃～+150℃
Rotary Ring (Ceramic/SiC)
Stationary Ring (Plastic Carbon/Carbon/SiC)
Cup Gasket (NBR/EPDM/HNBR/VITON)
Bellows (nbr/EPDM/HNBR/VITON)
Spring Holder (Brass)
Spring (SUS304/SUS316)
Retainer (Brass)

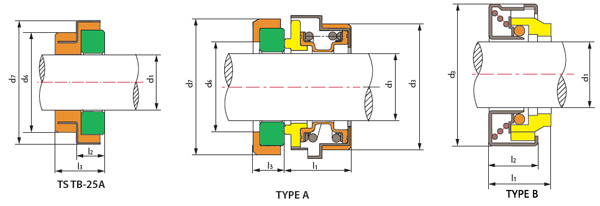

| Model | d1(mm) | d3 | d6 | d7 | l1 | l2 | l3 | TYPE |
| TSTB-12 | 12 | 40 | / | 28.575 | 10.7 | 10.3 | 4.45 | B |
| TSTB-25 | 25 | 44 | 32 | 44 | 21.5 | / | 8.5 | A |
| TSTB-25A | 25 | 44 | 35 | 41 | 21.5 | 5 | 10 | A |
| TSTB-25H | 25 | 44 | 32 | 44 | 21.5 | / | 10 | A |
| Model | d1(inches) | d3 | d6 | d7 | l1 | l2 | l3 | TYPE |
| TSTB-3/8" | 9.525 | 20.6 | / | / | 8.5 | 7.2 | / | B |
| TSTB-3/8"A | 9.525 | 20.6 | / | / | 6.5 | 5.9 | / | B |
| TSTB-5/8" | 15.875 | 28.6 | / | 25.5 | 9.8 | 9.6 | 5.7 | B |
| TSTB-11/16" | 17.5 | 30.1 | / | / | 9 | 8.4 | / | B |
| TSTB-1" | 25.4 | 50.8 | / | / | 10.16 | 9.65 | / | B |
