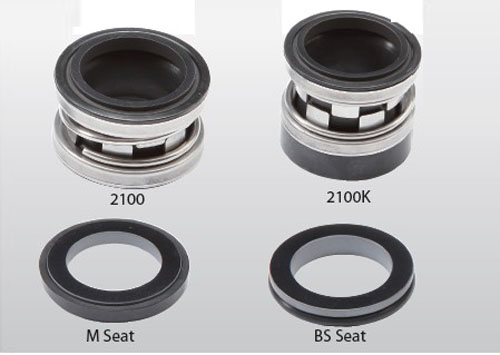

TS 2100 Machined Mechanical Seal (replace AESSEAL B05,Crane 2100 and FLOWSERVE 140)
Our Mechanical seal model 2100 can Replace AESSEAL B05,Crane 2100 and FLOWSERVE 140 . we usually us seat type G6 for match it. The normal material combination include carbon/ceramic/nbr/ ss304,resin c...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
we usually us seat type G6 for match it. The normal material combination include carbon/ceramic/nbr/
ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316 and so on. we also can make
changes as customers'requirement or totally totally design a new type of mechanical seal to meet clients'needs.
Pressure: ≤1.6MPa
|

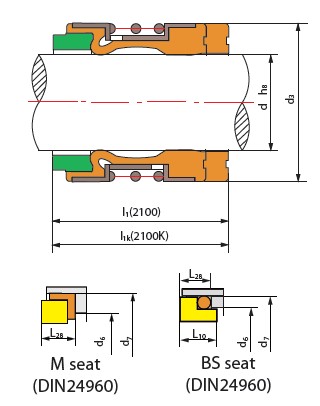

Seal size d(mm) |
d3 |
d6 |
d7 |
2100 |
2100K |
M seat |
BS seat |
|
l1 |
l1k |
l28 |
l10 |
||||
|
10 |
20 |
17 |
21 |
15 |
27.5 |
5 |
6.0 |
|
12 |
22 |
19 |
23 |
15 |
26.5 |
6 |
6.8 |
|
14 |
24 |
21 |
25 |
15 |
29.0 |
6 |
6.8 |
|
15 |
25 |
22 |
26 |
15 |
29.0 |
6 |
6.8 |
|
16 |
26 |
23 |
27 |
15 |
29.0 |
6 |
6.8 |
|
18 |
32 |
27 |
33 |
20 |
31.5 |
6 |
7.0 |
|
20 |
34 |
29 |
35 |
20 |
31.5 |
6 |
7.0 |
|
22 |
36 |
31 |
37 |
20 |
31.5 |
6 |
7.0 |
|
24 |
38 |
33 |
39 |
20 |
34.0 |
6 |
7.0 |
|
25 |
39 |
34 |
40 |
20 |
34.0 |
6 |
7.0 |
|
28 |
42 |
37 |
43 |
26 |
36.5 |
6 |
7.0 |
|
30 |
44 |
39 |
45 |
26 |
35.5 |
7 |
8.0 |
|
32 |
46 |
42 |
48 |
26 |
35.5 |
7 |
8.0 |
|
33 |
47 |
42 |
48 |
26 |
35.5 |
7 |
8.0 |
|
35 |
49 |
44 |
50 |
26 |
34.5 |
8 |
9.0 |
|
38 |
54 |
49 |
56 |
30 |
37.0 |
8 |
9.0 |
|
40 |
56 |
51 |
58 |
30 |
37.0 |
8 |
9.0 |
|
43 |
59 |
54 |
61 |
30 |
37.0 |
8 |
9.0 |
|
45 |
61 |
56 |
63 |
30 |
37.0 |
8 |
9.0 |
|
48 |
64 |
59 |
66 |
30 |
35.0 |
10 |
11.0 |
|
50 |
66 |
62 |
70 |
30 |
37.5 |
10 |
11.0 |
|
53 |
69 |
65 |
73 |
30 |
37.5 |
10 |
11.0 |
|
55 |
71 |
67 |
75 |
30 |
37.5 |
10 |
11.0 |
|
60 |
80 |
72 |
80 |
33 |
40.5 |
12 |
12.7 |
|
65 |
85 |
77 |
85 |
33 |
40.5 |
12 |
12.7 |
|
70 |
90 |
83 |
92 |
33 |
48.0 |
12 |
12.7 |
|
75 |
99 |
88 |
97 |
40 |
48.0 |
12 |
12.7 |
