TS T1 Machined Mechanical Seal
Our Mechanical seal model T1 can Replace AESSEAL P05U and JOHN CRANE 1 (US) . The normal material combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nb...
We are here to solve your problems professionally
Contact Now
- Tel:0086-21-58355541
- Fax:0086-21-58353141
- Email: trisun24@trisunltd.com（sales）
combination include carbon/ceramic/nbr/ss304,resin carbon/ceramic/nbr/ss304/,sic/sic/nbr/ss304,tc/tc/nbr/ss316
and so on. we also can make changes as customers'requirement or totally totally design a new type of mechanical
seal to meet clients'needs.

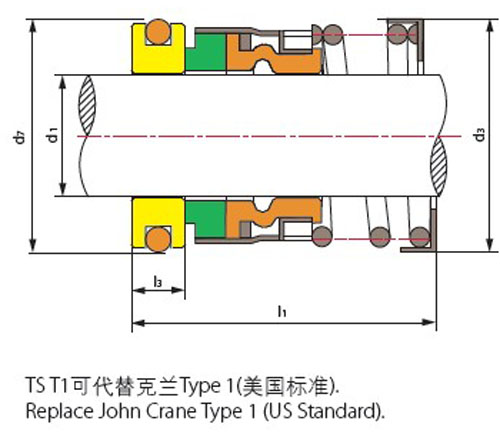

TS T1
|
Model |
d1 (inches) |
d3 |
d7 |
l1 |
l3 |
|
T1-1〞 |
25.400 |
38.1 |
41.275 |
50.77 |
11.1 |
|
T1-1 1/8" |
28.575 |
41.5 |
44.450 |
52.40 |
11.1 |
|
Tl-1 1/4" |
31.750 |
46 |
47.625 |
52.40 |
11.1 |
|
T1-1 3/8" |
34.925 |
47.6 |
50.800 |
53.90 |
11.1 |
|
T1-1 7/16" |
36.500 |
50.8 |
53.975 |
53.90 |
11.1 |
|
T1-1 1/2" |
38.100 |
50.8 |
53.975 |
53.90 |
11.1 |
|
Tl-1 5/8" |
41.275 |
57.2 |
60.325 |
63.50 |
12.7 |
|
Tl-1 3/4" |
44.450 |
60.5 |
63.500 |
63.50 |
12.7 |
|
Tl-1 7/8" |
47.625 |
63.5 |
66.675 |
66.70 |
12.7 |
|
T1-2" |
50.800 |
66.7 |
69.850 |
66.70 |
12.7 |
|
T1-2 1/8" |
53.975 |
71.4 |
76.200 |
74.60 |
14.3 |
|
T1-2 1/4" |
57.150 |
74.6 |
79.375 |
74.60 |
14.3 |
|
T1-2 3/8" |
60.325 |
77.8 |
82.550 |
77.80 |
14.3 |
|
T1-2 1/2" |
63.500 |
81 |
85.725 |
77.80 |
14.3 |
|
T1-2 5/8丨， |
66.675 |
85.7 |
85.725 |
85.75 |
15.9 |
|
T1-2 3/4" |
69.850 |
88.9 |
88.900 |
85.75 |
15.9 |
|
T1-2 7/8n |
73.025 |
92 |
95.250 |
88.90 |
15.9 |
|
T1-3" |
76.200 |
95.2 |
98.425 |
88.90 |
15.9 |
|
T1-3 1/2" |
88.9 |
111.1 |
111.1 |
99.18 |
19.8 |
