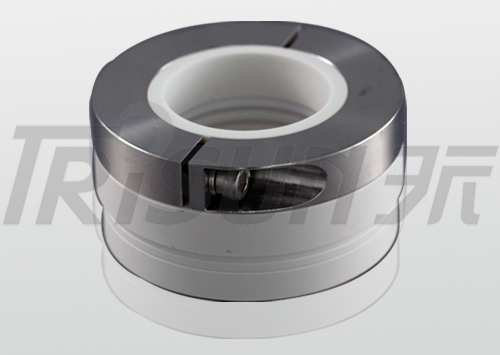

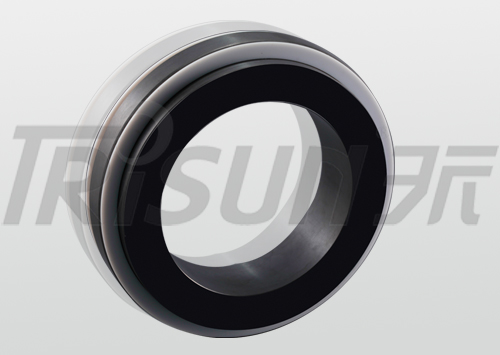

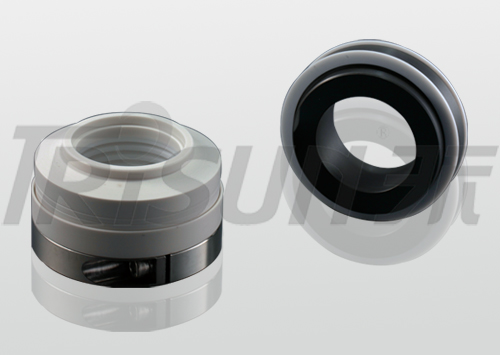

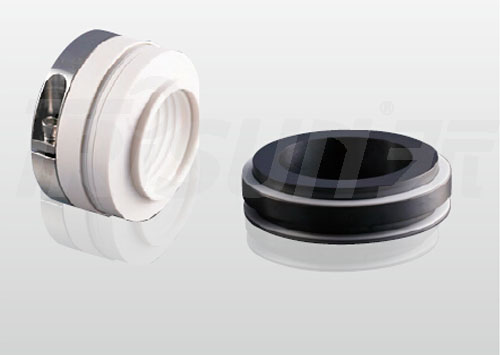

TS 20 TS 20R
Our Mechanical seal TS20 TS20R can replace John Crane 20R 20.
20 is integral rotary face ,20R is insert rotary face
Our Mechanical seal TS20 TS20R can replace John Crane 20R 20.
20 is integral rotary face ,20R is insert rotary face
|
Operating Limits Pressure: ≤ 1MPa Speed: ≤ 13m/s Temperature: -35℃ ~+120℃ ● Rotary Ring (Filled PTFE/SiC) ● Stationary Ring (99%Ceramic/SiC) ● Secondary SeaI(PTFE) ● Spring & Other Parts(SUS304/SUS316) |

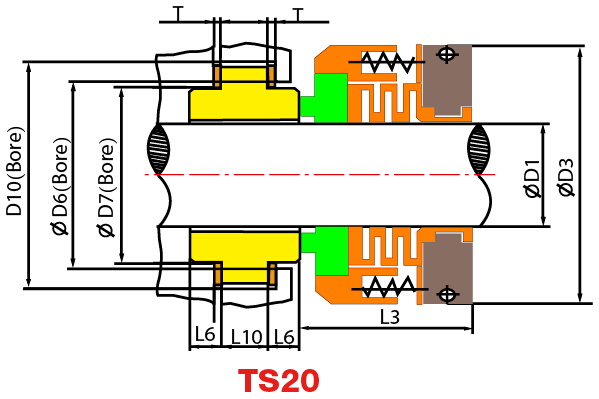

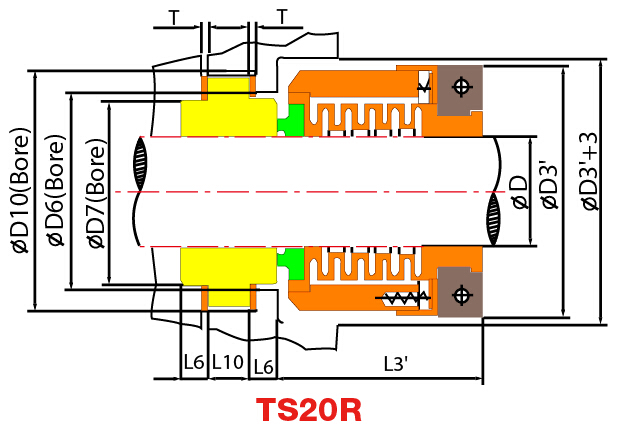

| Seal Size(Inches) | D1 | D3 | D6 | D7 | D10 | L3 | L6 | L10 | T | D3‘ | L3’ |
|
0.625
0.750
0.875
1.000
1.125
1.250
1.375
1.500
1.625
1.750
1.875
2.000
2.125
2.250
2.375
2.500
2.625
2.750
2.875
3.000
3.125
3.250
3.375
3.500
3.625
3.750
3.875
4.000
|
0.625
0.750
0.875
1.000
1.125
1.250
1.375
1.500
1.625
1.750
1.875
2.000
2.125
2.250
2.375
2.500
2.625
2.750
2.875
3.000
3.125
3.250
3.375
3.500
3.625
3.750
3.875
4.000
|
33.3
36.5
39.7
57.2
60.3
66.7
69.9
73.0
76.2
79.4
85.7
88.9
92.1
95.3
98.4
101.6
104.8
108.0
111.1
114.3
123.8
127.0
130.2
133.4
136.5
139.7
142.9
146.1
|
37.5
40.5
43.5
51.5
55
58
64.5
67.5
71
74
80
83.5
86.5
89.5
93
96
99
102.5
104
115
121.5
128
137.5
|
36.51
39.69
42.86
50.8
53.98
57.15
63.5
66.68
69.85
73.03
79.38
82.55
85.73
88.9
92.08
95.25
98.43
101.6
103.17
114.3
120.65
127
136.53
|
48
51
54
61
68
71
77
80
83
90
96
99
102
106
109
112
115
118
120
131
137
144
153
|
52.4
52.4
25.4
25.4
27.0
27.0
28.6
28.6
34.9
34.9
34.9
34.9
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
|
4.8
4.8
4.8
5.5
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4
6.4 6.4 6.4 |
8
8
8
9.5
9.5
9.5
9.5
9.5
9.5
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7 12.7 12.7 |
0.8
0.8
0.8
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
|
49.2
57.2
60.3
66.7
69.9
73.0
76.2
79.4
85.7
88.9
92.1
95.3
98.4
101.6
104.8
108.0
111.1
114.3
123.8
127.0
130.2
133.4
136.5
139.7
142.9
146.1
|
49.2
27.0
28.6
28.6
28.6
28.6
34.9
34.9
34.9
34.9
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8
42.8 |
