TB H10
Our Mechanical seal model TB H10 can replace Burgmann H10
Balance design , Ultra short structure , Arbitrary rotation direction and high speed
|
Operating Limits:
Pressure: ≤2.5MPa
Speed: ≤35m/s
Temperature: -20℃~+180℃
● Rotary Ring(Graphite/SiC/TC) ● Stationary Ring(SiC/TC) ● Secondary Seal(VITON/Kalrez) ● Spring & Other Parts(SUS304/SUS316) |
 |

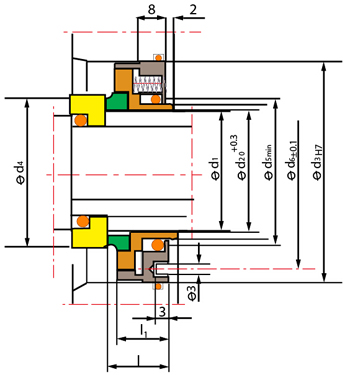

| d1 | d2 | d3 | d4 | d5 | d6 | l 0.5 | l 1 |
|
15
18
20
22
25
28
30
32
35
38
40
42
45
48
50
52
55
58
60
65
68
70
75
80
85
90
95
100
|
16
19
21
23
26
29
31
33
36
39
41
43
46
49
51
53
56
59
61
66
69
71
76
81
86
91
96
101
|
42
45
48
50
52
55
58
60
62
65
68
72
75
80
80
82
85
90
90
95
100
100
108
112
118
122
128
132
|
22.6
25.6
27.6
29.6
32.8
35.8
37.8
39.8
42.8
45.9
47.9
49.9
52.9
55.9
58.2
60.2
63.2
66.7
68.7
73.7
76.7
78.7
83.7
88.7
93.7
99.5
104.5
109.5
|
21
24
26
28
31
34
36
38
41
44
46
48
51
54
56
58
61
64
66
71
74
76
81
86
91
96
101
106
|
34
37
40
42
44
47
50
52
54
57
60
64
67
72
72
74
77
82
82
87
92
92
100
104
110
114
120
124
|
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
19
19
19
19
19
19
19
19
19
|
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
16
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
|
