TS 2115
Upgrade JC 2100 , Resist high pressure, compact conformation excellent in small pump house
|
Operating Limits:
Pressure: ≤4MPa
Speed: ≤15 m/s
Temperature: -30℃～+150℃
● Rotary Ring(Graphite/SiC/TC) ● Stationary Ring(SiC/TC) ● Secondary Seal(EPDM/VITON) ● Spring & Other Parts(SUS304/SUS316) |
 |

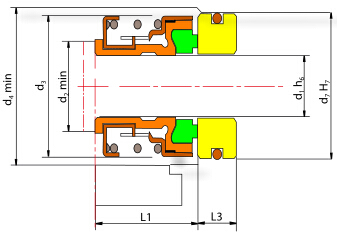

| Model | d1 (inches) | d2 | d3 | d4 | d7 | L3 | L1 |
|
7/16"
1/2"
5/8"
3/4"
7/8"
1"
1 1/8"
1 1/4"
1 3/8"
1 1/2"
1 5/8"
1 3/4"
1 7/8"
2
|
11.1
12.7
15.875
19.05
22.225
25.4
28.575
31.75
34.925
38.1
41.275
44.45
47.625
50.8
|
14
16.7
19.4
23.8
27
30
33.5
37
40.5
43.5
47
50.5
54
57
|
23.2
24.0
27.0
32.0
36.0
39.0
42.0
46.0
49.5
54.0
56.5
61.0
64.0
67.5
|
25.0
26.0
28.0
34.0
38.0
41.0
44.0
48.0
51.0
58.0
60.0
65.0
68.0
70.0
|
30
25.4
31.75
34.93
38.1
41.28
44.45
47.63
50.8
53.98
60.33
63.5
66.68
69.85
|
8.7
7.9
10.3
10.3
10.3
11.1
11.1
11.1
11.1
11.1
12.7
12.7
12.7
12.7
|
18
20.62
22.23
22.23
23.8
25.4
26.97
26.97
28.58
30.15
34.93
34.93
38.1
38.1
|
